Setup
Before we start, register for the project using the registration tool.
Engine Changes
For the last time, our engine library has been updated with new functionality (but not as much as previous weeks). As always, we’ll go over the changes that were made to the engine. These changes are especially relevant if you plan on using any sort of collisions in your final game. We encourage you to follow along by reading the relevant files as you read the guide.
There are a lot of subtasks for this project but only because we’ve decided to break things down into very small pieces. The project is actually much less coding than previous projects!
forces.h
For last week’s space invaders demo, you might’ve noticed that with how destructive collisions
were set up, we had to manually recount the number of invaders left every tick. Wouldn’t
it have been nicer if we kept track of the number of invaders in state_t
, and we
decremented it every time a destructive collision occurred?
We’ve added collision_handler_t
and create_collision
abstractions this week which would solve that problem.
collision_handler_t
describes the format of a generic collision handler that takes two bodies,
the axis of collision (more on that later!), an optional auxiliary info variable, and a force constant.
aux
is given to provide any useful information to the collision handler. If we were to
remake our space invaders demo from last week, for example, aux
could be the state_t
of the game
that contains the number of remaining invaders.
create_collision
is how you register the custom collision handler. It acts very similar
to the create_x
force functions and uses scene_add_force_creator
internally to
register a collision force creator along with the collision handler that you pass in.
You can’t see the implementation of the collision force creator, but all you need to
know is that it checks if a collision has occurred between the two bodies. Only then
will it call the collision_handler_t
that you passed in.
create_destructive_collision
’s functionality remains the same, but internally, we’ve
refactored it to call create_collision
, which made our code much simpler
and flexible. This is another example of abstraction at work.
As an exercise, what do you think the collision_handler_t
for create_destructive_collision
would be?
We’ve also added a create_physics_collision
function that also uses our
create_collision
abstraction to register inelastic and elastic collisions
between bodies. Read the documentation for more information!
body.h
We’ve added a new body_reset
function for you that resets the force and impulse of the body.
Engine
Collision Resolution
Last week, you implemented find_collision()
to detect collisions between two convex polygons.
This week, you will help implement collision resolution, which changes the velocities of the bodies based on the physics of the collision.
The good news is that we’ve already implemented the physics collision for you; all you need to
do is make a small update to your collision code from last week.
Finding the collision axis
When two bodies collide in 3D space, there is a contact plane tangent to both bodies at the point of collision. The collision creates a “normal force” perpendicular to the contact plane. In 2D space, there is an analogous contact line tangent to the bodies. Just as in 3D physics, the applied force is perpendicular to the contact line. We refer to the unit vector perpendicular to the contact line as the “collision axis.” (There are actually two perpendicular directions; we will choose the one that points from the first body towards the second.) In the example below, the black line is the contact line and the red vector is the collision axis (from the green body towards the blue body).
When bodies are polygons rather than continuous shapes, there is no longer a tangent line, but we can approximate a collision axis.
Since you implemented the Separating Axis method last week, the collision axis is simply the axis onto which the shapes’ projections have the least overlap.
Collision Axis
First, take a look at collision.h
. Since we care about the separating axis now, find_collision
now
returns a collision_info_t
struct that contains whether or not the bodies collided in addition to the axis.
We’ve already rewritten find_collision
to use the new return type of compare_collision
. Take a look at it
to see how compare_collision
is supposed to interact with it.
Notice the double
“overlap” variables. These variables represent the minimum overlap calculated by
the two collision functions. We’ll pass in their addresses to compare_collision
so that the function
can update their values every time a new minimum overlap is found. If a collision has occurred, we’ll
compare the minimum overlap from both calls and return the separating axis that corresponds to the
smaller of the two.
Next, copy and paste your implementation of get_max_min_projections
and compare_collision
from last week into collision.c
, taking
care not to overwrite the collision_info_t
return type. Here are the changes that you will have to make:
- keep track of the collision axis that corresponds to the minimum overlap
- instead of returning
false
, you’ll have to return acollision_info_t
with that information.axis
won’t have to be set to anything meaningful since we can assume that it won’t be accessed if a collision hasn’t occurred. - calculate the overlap that occurs between the two projections. If the overlap is less than what
min_overlap
points to, update it along with the collision axis. - If every projection overlaps, return the collision axis along with
collision
set totrue
.
Task 0.
Implement compare_collision
in collision.c
.
Game
This week, you will be adding the ability to attach bodies to assets so that images can be rendered on top of bodies. After implementing the library, you will fill in parts of the game to implement a basic version of Frogger:
Small Asset Engine Changes
Before you start, copy over your asset_cache.c
file from project05 to project06.
Don’t worry about copying over asset.c
just yet because we’ll be modifying it later.
We’ve decided to modify asset.c
this week. Last week for the meme generator, we had to manage a list of assets
in the state. It’s reasonable to assume that each demo from here on out will
maintain a list of assets, so we’ve decided to follow a similar design pattern
to what we did in asset_cache
: store a global list of assets in asset.c
.
If you click into asset.c
, you’ll see that we’ve declared a static ASSET_LIST
variable
at the top. We’ve modified asset_init
to initialize ASSET_LIST
if it hasn’t already
been initialized.
Since we’re using this list and no longer maintain our own, we no longer have to return asset_t
’s
in our asset_make_x
functions: we can just directly add them to our internal list!
As a result, the function signatures of asset_make_image
and asset_make_text
have
changed from asset_t *
to void
. You first task will be to update the code
to reflect this change.
Task 1.
Copy over your implementations of asset_make_image
and asset_make_text
from
project05 to project06, but instead of returning the assets, add them to ASSET_LIST
.
Because of this change, we’ve also added and implemented two more functions for you:
asset_reset_asset_list
and asset_get_asset_list
. You’ll use these two functions
to interact with the asset list from the demo.
Attaching Bodies to Images
To render images over bodies, there are two design choices that we can make: attaching bodies to images,
or attaching images to bodies. In this implementation, we’ll go with the former. Among other things,
we’ll have to refactor less of our library, and we can preserve our pattern of storing assets in a list and rendering them in emscripten_main
.
Asset Library Overvieew
We’ll begin by taking a look at asset.c
and asset.h
. In asset.c
, we’ve provided
the new image_asset_t
struct for you: the only thing we’ve added is a body
field.
If you open up asset.h
, you’ll notice that we’ve added a new function: asset_make_image_with_body
.
It allows the user to initialize an image asset using the filepath and body.
Note that the function doesn’t need to take a
bounding box anymore, because the image will be rendered over the body, whose bounding box may
change after every tick.
Since we want the image to be rendered over its body, we’ll need a way of getting the bounding box that corresponds to the body. This leads us to our first task.

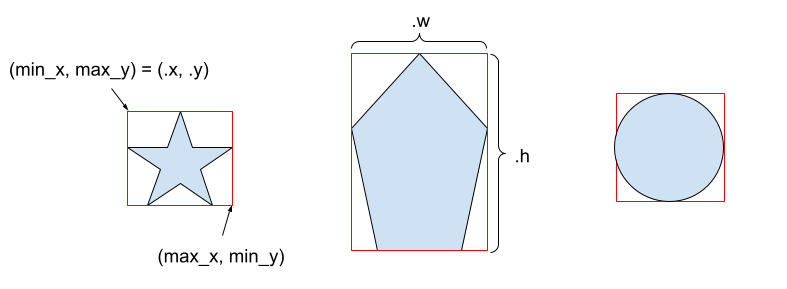

Getting the bounding box for a body
Getting the bounding box for a body will be relatively straightforward. We’ll want the bounding box to be the smallest box that can cover the body entirely.
Thus, we’ll iterate through all the points in the body, storing variables for the
top left and bottom right corners as vectors. Once we’ve iterated through all the points,
we’ll know that the smallest bounding box will have a top left corner at
(min_x, max_y)
and bottom right corner of (max_x, min_y)
. Then, we can
use those points to calculate the fields of the SDL_Rect that we return. Remember that .x
and
.y
refer to the top left point, and .w
and .h
can be calculated from the difference
between the maximum and minimum x and y values.
If you are looking for a really small number to use, use -__DBL_MAX__
instead of __DBL_MIN__
!
Since we are using SDL_Rect (and another reason that will become clear later), we should implement
the function to get a bounding box for a body in sdl_wrapper.c
.
Task 2.
First, copy and paste your previous implementations of sdl_wrapper.c
and
sdl_wrapper.h
.
Then, create and implement a function to get a bounding box for a body in sdl_wrapper.c
.
Make sure to define
the function header in sdl_wrapper.h
!
For reference, our function signature for this function was: SDL_Rect sdl_get_body_bounding_box(body_t *body)
.
Modifying asset.c
Now we can modify asset.c
to render images that contain bodies.
Now that our image assets can contain bodies, we’ll have to modify our asset_make_image
functions slightly. We’ll still keep the code that’s currently in the asset_make_image
function but just
add a line setting the body
field to NULL. In asset_make_image_with_body
, we’ll set the body
field appropriately
but pass in an arbitrary SDL_Rect
to asset_init
.
Task 3a.
First, copy and paste your last week’s implementation of asset_cache.c
and asset_render
in asset.c
.
Then, implement and modify asset_make_image_with_body
and asset_make_image
, respectively.
Now that the user can initialize image assets with bodies, we’ll also have to change asset_render
,
and more specifically, the case if the asset has type ASSET_IMAGE
.
The fix will be small: if the asset’s body
field is not NULL, we’ll set the bounding box
to the body’s bounding box (which we can get using the function we just wrote). Otherwise,
we’ll render the image asset like normal.
Task 3b.
Modify asset_render
so that images with bodies use the body’s bounding box.
game.c
Now we can start putting everything together in game.c
.
We’ve given you most of the starter code. While you look through it, take a
look at emscripten_main
: it iterates through the body_assets
list set by asset_get_asset_list()
and renders each asset. Your job is to add the image assets in emscripten_init
.
We’ve defined the filepaths for you at the top of the
file. You’ll want to call the new asset_make_image_with_body
function.
Task 4a.
Modify emscripten_init
so that the frog and log bodies attach to their corresponding
image assets. Make sure to only replace the TODOs labeled with “TODO (task 4a)...
”.
Once you’re done, run run make game
or make NO_ASAN=true game
.

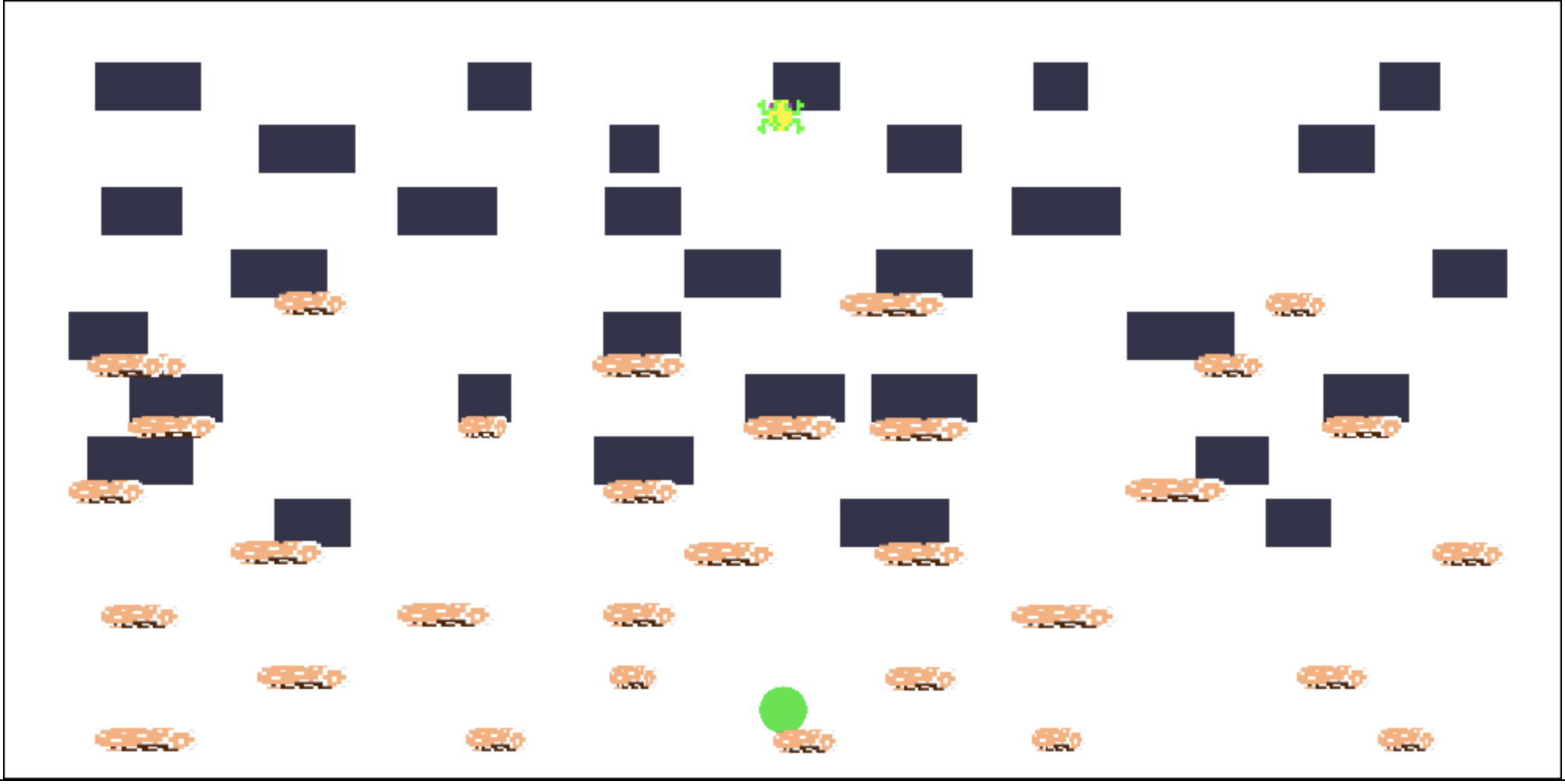

If you’ve followed everything so far, your images might look a little funky:
It seems like the images are flipped across the center of the window. When the frog body moves up, the corresponding image moves down.

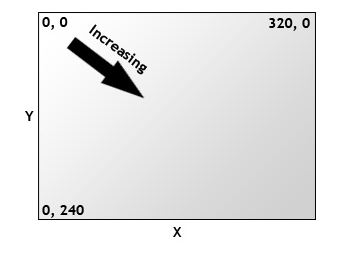

This is because of a small nuance in our function to get the bounding box for a body. In the SDL library, the y coordinates increase from top to bottom, not bottom to top. This explains why the images are “flipped” horizontally:
How should we fix this? Take a look at sdl_draw_body
function in sdl_wrapper.c
and
look at how bodies are rendered. As it iterates through all the points in the body,
it accounts for the different y axes by using get_window_position
and get_window_center
to get the appropriate SDL
coordinates. It then uses the new list of converted points to render
the body onto the screen correctly.
We’ll do the same thing in our function to get a body’s bounding box. Since we’ve defined it in
sdl_wrapper.c
, we have access to the get_window_position
and get_window_center
functions.
Following sdl_draw_body
as a guide, we’ll get the window center and use it to convert
the top left and bottom right variables to the appropriate SDL coords.
Once you do that, you may also have to fix how we calculate .h
for the SDL_Rect
that we return
since the top left corner now has a smaller SDL
y coordinate than the bottom right corner. If
.h
is negative, the image won’t appear.
Task 4b. Modify your function to get the bounding box of a body so that it converts each coordinate to the SDL coordinates.
Once you’re done, run make game
or make NO_ASAN=true game
.

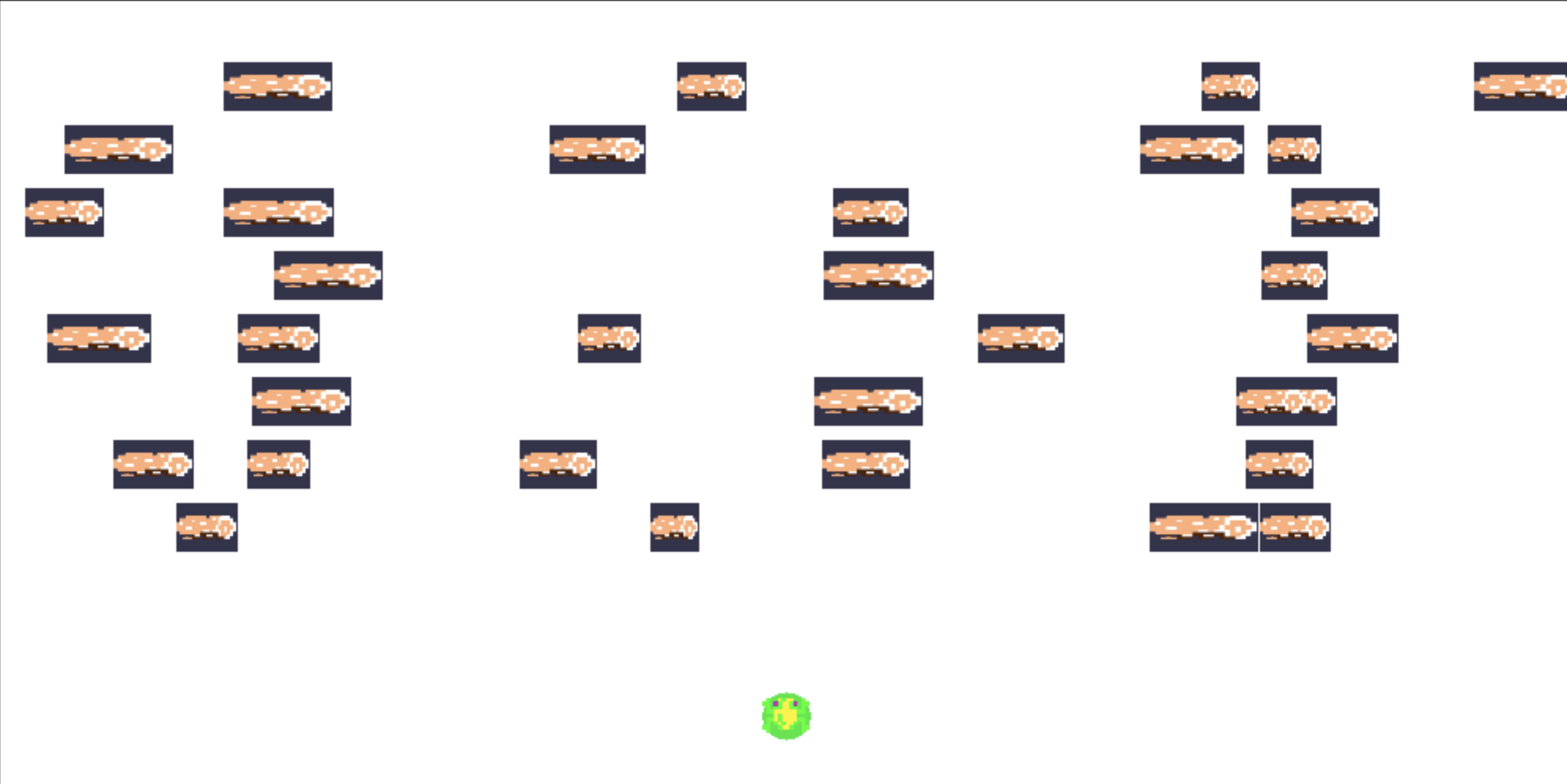

If done correctly, the images should overlay the bodies like this:
However, there’s one problem: the bodies can be seen behind the images. There are two fixes for this:
- We can render a background image. Since we are rendering all the images after we render the bodies, the bodies won’t be visible.
- We can delete
sdl_render_scene()
fromemscripten_main
, since every body in our scene has a corresponding image.
In emscripten_init
, replace the “TODO: (4c)...
” with code to render the background image
and add it to the state. Note that we shouldn’t be using asset_make_image_with_body
since
there is no body attached to the background image.
Even though we have a background image now, we might as well delete sdl_render_scene
from emscripten_main
since the bodies won’t be visible anyways.
Note that the code has a tiny bug in it that might be preventing the frog from showing up–make sure to fix it!
Task 4c.
Modify emscripten_init
so that the background image is initialized and emscripten_main
so that we no longer run sdl_render_scene
.
Once you’re done, run make game
or make NO_ASAN=true game
.
Congrats! You’ve implemented a basic version of Frogger.
Removing bodies attached to assets
In this frogger game, we aren’t removing any bodies. However, if we had removed any bodies that were
attached to images (which you will most likely be doing for your game), this could lead to problems like memory out of bounds
errors.
Why would this happen? The scene is currently responsible for calling force
creators, which may mark bodies as removed and then free them all
within scene_tick
. If we then try to render all the image assets with bodies in the
next tick, we’d be accessing memory that has already been free’d.
We briefly discussed the structure of scene_tick
in project04, but here it is
again for reference:
- Goes through all the force creators and applies them onto bodies, potentially marking some bodies for removal.
- Goes through all the bodies that are marked for removal, and removes any force creators that are supposed to act on them.
- Actually removes and frees the bodies that have been marked for removal.
Before step 3 occurs, we need to somehow go through all the image assets and remove any of the ones whose bodies are about to be removed.
Our proposed solution is the following: every time body_remove
is run, body_remove
will pass in the body to asset_remove_body
, whose job is to find any image assets
that contain that body and remove them if they do.
This is another reason why we decided to shift from having the user
manage the list of assets to managing them in the asset engine: this way, we can
have body_remove
interact with ASSET_LIST
behind the scenes (which the user can’t
do because we’ve only provided an interface for body to them).
The general structure of asset_remove_body
will be the following:
- Go through all the assets in
ASSET_LIST
. - If the asset has an
ASSET_IMAGE
type and thebody
parameter is the same pointer as the body pointer the image asset contains, remove the asset from the list and destroy it.
Importantly, don’t break out of the loop once this condition occurs–multiple image assets could be pointing to the same body.
Also keep in mind that you don’t have to explcitily call asset_remove_body
anywhere–we call this function in our internal implementation of body_remove
.
Task 5.
Implement asset_remove_body
in asset.c
.
Final Task
Your game repo is presumably empty with the exception of your README.md. Since we’ve just completed our last physics-related project, please copy all your files from this project to your game repo to serve as the foundation for your game.
If you’ve already written code for your game in game.c
–great! Just make sure to completely replace the
include
, library
, ref
folders and Makefile
with the versions
in this project.
Task 6.
One member of your team should copy all the files from their project06
repo to your shared game
repo once they are done with the project.
